iPC-HD

• The Controller is designed for built-in into the pole.
• The 1–10 V / PWM / DALI output of the controller can simultaneously address max. up to 10 operating devices, which must not consume more than 8 mA in total.
• The controller supplies the connected operating devices with bus voltage supply and is not suitable for an external supply.
• The digital control input ceases to be electrically isolated as soon as an electronic operating devices is connected to the controller.
• The configurable parameters of the applications as well as optional firmware updates ensure a high degree of investment protection.
• Both, OEM and customer-specific versions can be protected against unauthorised distribution with a special software key. Please contact your iciti representative for more information on this function.


Lon-Mark® OLC-PROFIL

In accordance with the mentioned ANSI and EN specifications, the controller is fitted with an interoperable network interface, which is essential for setting up heterogeneous networks. The definition of the exact data structure for data transfer purposes is fixed in accordance with the LonMark® definition in line with the so-called OLC profile (Outdoor Luminaire Controller). Controllers that are manufactured in line with this standard, even if produced by different manufacturers, can be integrated into a common network. All communication data are completely routable to other medias like FT (Free Topology) or wireless.

Functions

MFF (Maintenance Factor Function)

Lamps age, mirrors and luminaire cover glass become dirty. This unwanted effect is compensated over the service life of the lamp to ensure a constant luminous flux. The effect can be combated by quantifying the expected decrease in luminous flux over the lamp’s service life, which helps to save energy costs. This function can also be used to precisely set the luminaire to suit the lighting task if the lighting level would otherwise be too high as a result of a substitute luminaire.

L_ST (Control input)

In addition, using a control input (e.g. with a push button or motion sensor) the system can be switched to a certain lighting level for a freely configurable period of time.

Configuration and Graphic user interface

Despite being a highly complex piece of technology, the controller’s intuitive software interface makes it both user-friendly and easy to configure. The GUI enables direct configuration via the powerline.

If the controller is integrated into a light management system the parameters are configured from a central control point and lighting control is web-based online.

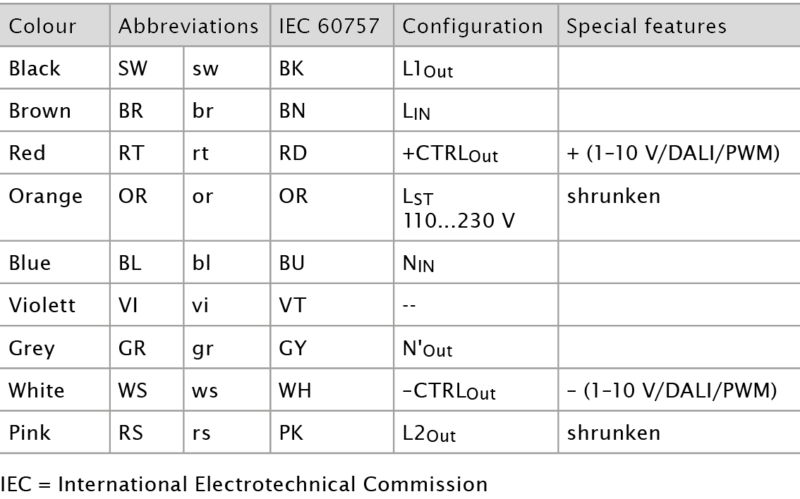

Main cable for supply and control of driver and sensor

IP/CAT5 Cable 100Base-T with IP65 Protection class as optional accessory

Typical Application

Configuration example for a typical application using an FT router. This configuration can be realized in street lighting as well as in buildings.

In addition to the transmission of standard control signals, multimedia/IP data with large data volume can also be transmitted by using the iPC-HD controller.

Sales text

Network-capable, multifunctional, intelligent built-in pole controller with high-definition powerline communication, suitable for use in street lighting, lighting in the vicinity of buildings and industrial lighting. The iPC-HD enables the control of luminaires with electronic control gears (EBs, LED drivers) with 1-10 V, PWM or DALI interface. The controller permits control of luminaires if connected to a switched lighting or mains cable. All kinds of sensor can be used with the universal control input. Ballasts with a DALI interface are addressed using a broadcast command, which removes the need for commissioning the electronic ballast. The controller is configurable and updateable. Key parameter values such as voltage, current, output, energy and lighting hours are captured for transfer to a central control point for evaluation. The 230 V AC control input permits the superimposed use of time-dependent dimming levels and dimming sequences. In sensor mode, the holding time for motion detectors can also be freely and retriggerably defined. In addition to pure lighting management, the iPC-HD offers transparent IP communication for IP/multimedia applications. A 100Base-T interface is available for connecting IP-capable components.

Text for invitation to tender

Powerline-capable built-in pole controller for controlling luminaires in street lighting and in the vicinity of buildings that are operated using a switched lighting cable or an unswitched mains cable in combination with a sensor or a control line as well as for transparent IP communication for IP/multimedia applications via 100Base-T interface. Data transfer is undertaken in accordance with the standards ANSI/CTA (709.1, 709.8) and EN (14908-1, 14908-8). The controller communicates using the OLC-LonMark® profile. In line with the LON philosophy and the OLC LonMark® definition, the controller is equipped with the necessary applications to enable control as well as calculation of data and limit values.

Up to 10 operating devices that have a 1-10 V / PWM or DALI control input can be addressed simultaneously. In total, the connected operating devices must not consume more than 8 mA. Used as a bus master during DALI operation, commands are transmitted to electronic ballasts in broadcast mode. The pole controller features two switched outputs for switching a luminaire on and off up to 4 A in total. The bidirectional LON powerline communication is carried out according to CENELEC 50561-1 / IEEE 1901, class 2 acc. to 2000/299/EC, with a bandwidth of 2-28 MHz. The strength of HD-PLC communication technology supports automatic configuration of up to 10 repeaters organised by primary and secondary master. Thus, communication distances can be bridged between controllers that would never be able to communicate with each other in a direct way.

Optionally (configured) individual electronic ballasts can also be addressed via an allocated short address.

Synchronisable real-time clock, interoperable software interface, use of network variables and configuration parameters in acc. with LonMark®.

Control and monitoring parameters: switching on and off, power reduction/dimming, lighting hours, input voltage, current to the electronic ballast, phase shift cos(phi), calculated power uptake and energy consumption. Configuration and monitoring of limit values for voltage, current, power. Optionally extendable current measuring range via externally calibrated current converters in steps of 10 A to 100 A. The decline in luminous flux over the lamp’s service life can be compensated. Start and end values as well lamp service life values can be freely configured. For new lamps, the entire superimposed dimming function can be switched off in a lamp- and lighting-hour-dependent manner. When in operating mode, the controller can be connected to a switched lighting cable or an unswitched network cable in combination with a sensor or a control line. The 230 V AC control input can be used to influence the internally calculated switching and dimming function. Automatic calculation and tracking of the dimming level enables energy-optimised operation over the burning time of the light source as well as adaptation of oversized luminaires to the specific lighting task.

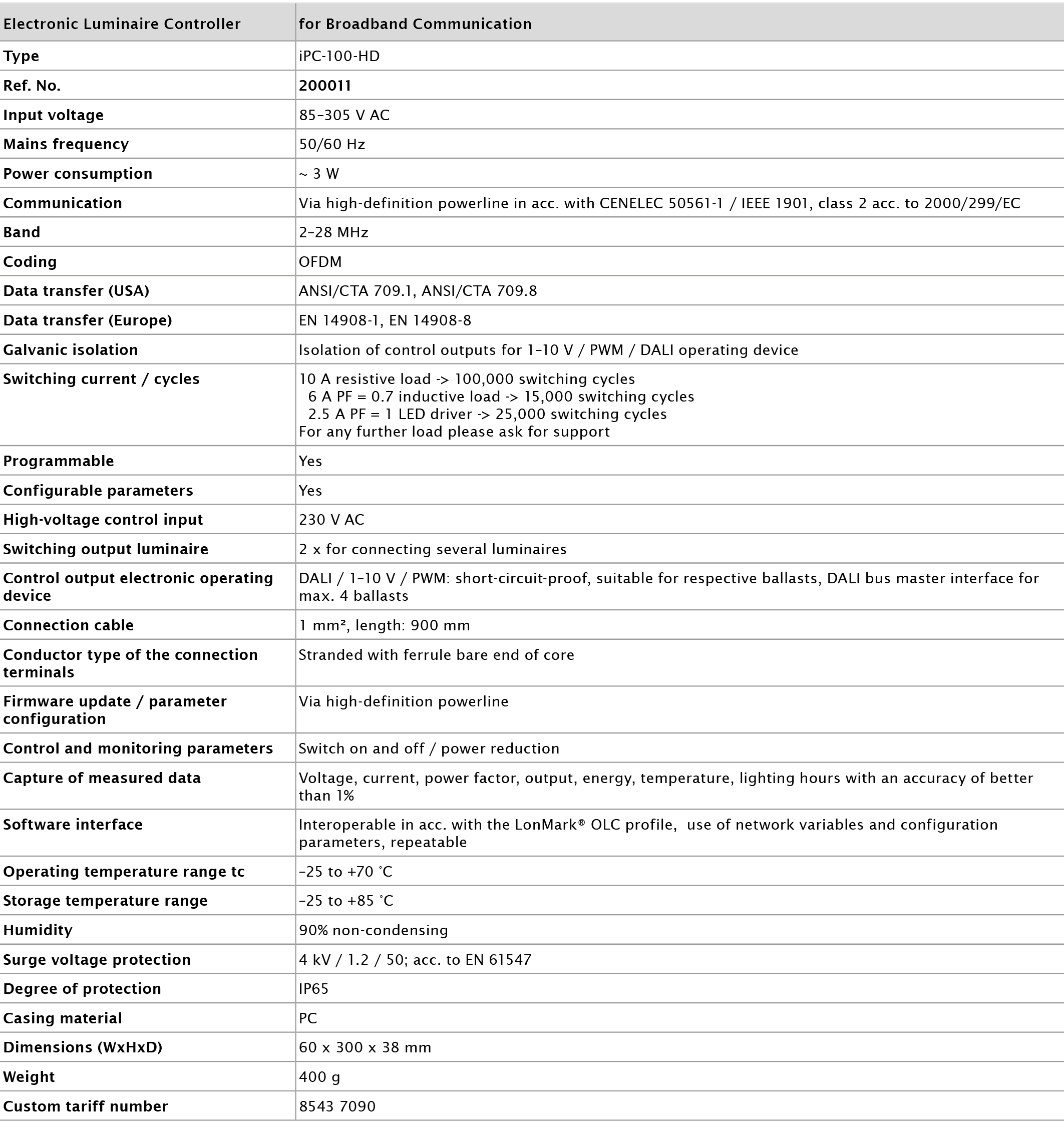

Electrical specifications: mains voltage 85–305 V AC, mains frequency 50/60 Hz, nominal current max. 4 A, power consumption ~ 3 W, surge voltage protection 4 kV / 1.2 / 50 in acc. with EN 61547.

Measuring accuracy: voltage U_eff, current I_eff, output P_eff, upwards of 1% in acc. with upper range value, energy kWh better than 1%, temperature, phase shift cos(phi) ≤ 0.02°.

Climatic conditions: operating temperature –25 °C to +70 °C, storage temperature –25 °C to +85 °C.

Polycarbonate plastic casing, dimensions (W/H/D) 60 mm / 300 mm / 38 mm, weight 400 g, degree of protection IP65.
